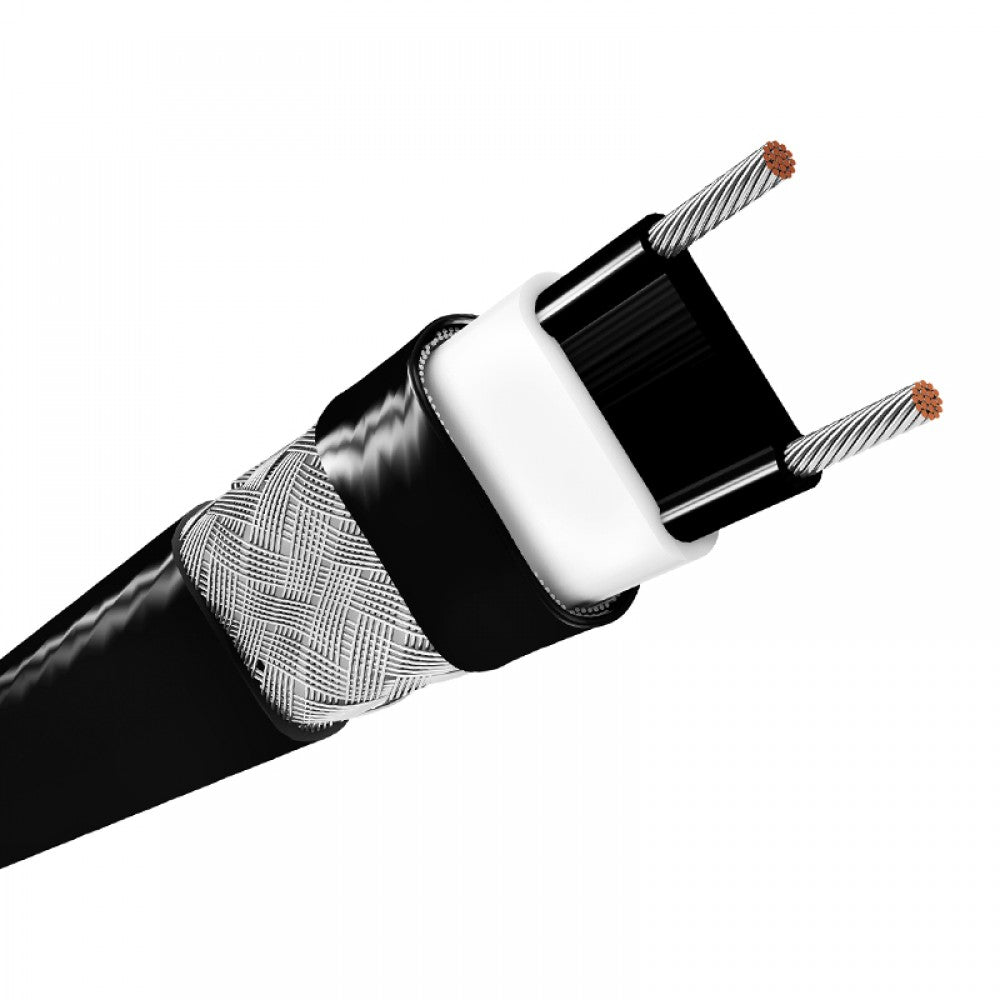

Self-Regulating Trace Heating Cables for Freeze Protection & Process Temperature Maintenance up to 65°C
The BTV series offers a versatile range of self-regulating trace heating cables designed for pipe freeze protection and process temperature maintenance in applications where steam cleaning is not required. These cables reliably maintain process temperatures up to 65°C (150°F) and can endure intermittent exposure to temperatures as high as 85°C (185°F).
Two outer jacket options are available to suit different environmental conditions: the polyolefin-jacketed (-CR) variant provides good resistance to mild inorganic solutions, while the fluoropolymer-jacketed (-CT) variant delivers robust chemical resistance against aggressive organic compounds and corrosive substances. The range includes four power output levels to match diverse application requirements: 3BTV (9 W/m), 5BTV (16 W/m), 8BTV (25 W/m), and 10BTV (29 W/m), all rated at 10°C ambient temperature.
Key Advantages
Simplified hazardous-area installation– The series carries an unconditional T6 temperature classification in accordance with EN60079-30-1, eliminating the need for complex sheath temperature calculations or additional control systems.
Fast and straightforward installation– The cables can be cut to length on-site, accommodate multiple overlaps around valves, flanges, and intricate piping configurations, and are supplied with user-friendly connection kits. Clear meter markings along the outer jacket further simplify measuring and cutting.
Safe, reliable, and energy-efficient operation– The self-regulating technology prevents localized overheating even when cables overlap, ensuring consistent pipe temperatures and reducing energy consumption. Additional energy savings can be achieved through integration with various control and monitoring systems. Furthermore, the unconditional T6 rating allows for safe installation on plastic pipes without requiring supplementary temperature controls.
